10 Best Solderless Patch Bays for Home Studio Setups in 2026

A good patch bay keeps your home studio cleaner, faster, and easier to reconfigure without crawling behind your rack. If you are building a flexible setup, the right solderless option can save time and reduce cable wear.

Below, we focus on practical choices for different workflows, from simple line-level routing to more permanent XLR-based installations.

Best 10 Solderless Patch Bay for Home Studio Picks for 2026

Rack-Ready Routing – Behringer Ultrapatch Pro PX3000 48-Point Patchbay

If you want a solderless patch bay for home studio routing, the Behringer PX3000 is a practical rackmount option for organizing balanced connections and reducing cable clutter. Its selectable operating modes let you tailor how gear is linked, making it useful when you need flexible signal routing without changing your setup every time.

Best For: Home studio owners who want a 1U balanced patchbay with multiple routing modes for cleaner signal management.

Pros:

• 48-point balanced patchbay with front and rear TRS jacks
• Selectable Parallel, Half-normalled, Normalled, and Open modes
• Rugged construction for long-term studio use
• Helps reduce cable clutter and improve organization

Cons:

• Uses TRS balanced connections, so it is best suited to compatible studio gear
• More advanced than a simple plug-through panel if you only need one fixed route

The PX3000 stands out if you need a patch bay that can adapt as your studio grows. It is a solid choice for routing flexibility, but it makes the most sense in a setup already built around balanced rack and interface connections.

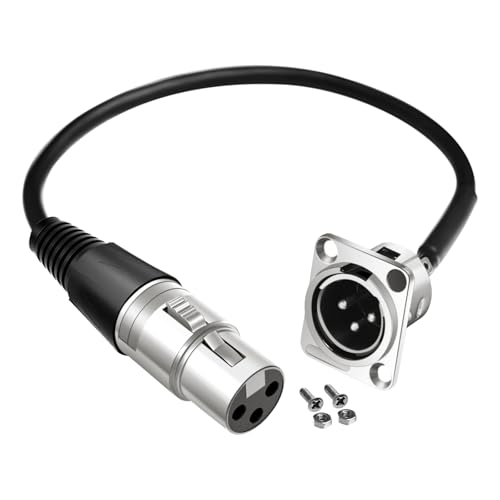

Simple XLR Wall Mount – Solderless 3-Pin XLR Panel Plate

This solderless patch bay for home studio use is aimed at quick XLR panel mounting without any welding. It is designed as a screw-mounted pass-through solution for audio gear, so it works well when you need a clean wall plate or equipment panel connection for microphones and related audio devices.

Best For: DIY installs that need a solderless XLR pass-through for mixers, microphone setups, and wall plates.

Pros:

• Solderless installation with simple screw or rivet mounting
• Designed for XLR-related audio equipment and microphone connections
• Premium copper inner core and PVC cable for durability and flexibility
• Low-noise transmission with corrosion-resistant aluminum alloy housing

Cons:

• Single-purpose XLR solution rather than a full multi-channel patchbay
• Best suited to panel or wall mounting, not general rack routing

If your goal is a straightforward XLR feedthrough, this model keeps installation simple and the signal path direct. It is a niche but useful choice for specific panel-mount jobs where soldering is not desirable.

Classic 1U Router – dbx PB-48 Point Patch Bay

The dbx PB-48 is a straightforward 48-point patch bay for home studio owners who want quick, noise-free access to mixers and outboard gear. With 1U rack mounting and front and rear quarter-inch jacks, it is built for practical routing and easier re-patching in a compact studio rack.

Best For: Studios that need a simple 1U rack patch bay for clean, reliable rerouting.

Pros:

• 48-point patch bay with 48 front and 48 back 1/4-inch jacks
• 1U rackmount format saves space
• Rugged metal construction
• Helps reduce jack wear and supports noise-free access

Cons:

• Lacks the multi-mode routing flexibility of more configurable patch bays
• Best suited to standard 1/4-inch studio connections

For straightforward studio patching, the PB-48 focuses on durability and convenience rather than complexity. It is a good fit if you want a dependable rack unit that keeps your signal paths easy to reach and manage.

No-Solder Feedthrough – D-Type XLR 2FT Pass-Through Cable

If you are building a solderless patch bay for home studio panels or rack enclosures, this D-type XLR pass-through cable is built for clean feedthrough installation. The 2-foot length and no-solder design make it practical for short internal runs where you want balanced XLR routing without adding extra clutter.

Best For: Custom rack, wall plate, and stage-box installs that need a no-solder XLR pass-through.

Pros:

• No-solder D-type XLR feedthrough design
• Supports balanced audio transmission and 48V phantom power
• 24AWG oxygen-free copper conductor with double shielding
• Includes screws and bolts for D-size panel mounting

Cons:

• Short 2-foot length limits it to close-panel or rackmount use
• Designed around XLR feedthroughs rather than general-purpose patching

This is a strong fit when you need a tidy, solder-free XLR bulkhead connection inside a rack or wall plate. Its value is in clean integration and shielding, not in multi-format patchbay flexibility.

Central Rack Patchbay – Samson S-Patch Plus 48-Point Audio Patch Bay

If you want a solderless patch bay for home studio routing, the Samson S-Patch Plus gives you a centralized 48-point TRS hub for cleaner connections and faster workflow. Its balanced design, front-panel mode switches, and rackmount layout make it a practical fit for tying together mixer and rack gear without constantly reaching behind equipment.

Best For: Home studios that need a flexible, rack-mounted TRS patchbay with normal, half-normal, and thru options.

Pros:

• 48-point fully balanced patch bay with 1/4-inch phone connections front and rear.
• Front-panel switches let each channel run normalled, half-normalled, or thru.
• Helps reduce back-of-rack cable access and keeps wiring cleaner.
• 1U, 19-inch rackmount format with a solid metal build.

Cons:

• Uses TRS phone connections, so it is not the right choice for XLR-only setups.
• Best suited to a rack workflow rather than a tabletop desktop setup.

This is the most full-featured option in the group if you need more channels and routing flexibility. For a home studio with multiple pieces of outboard gear, it offers a straightforward way to make connections easier to manage.

No-Solder Install Cable – DIYTECH XLR Pass Through Cable 2-Pack

For a solderless patch bay for home studio installs, this DIYTECH pass-through cable is aimed at quick XLR-to-TRS panel wiring without soldering. It is designed for patch bays, stage boxes, floor boxes, and panel mounts, making it a handy fit when you want a fast, no-solder connection method for pro audio installations.

Best For: Home studio installers who need a no-solder XLR-to-TRS pass-through solution for panels, boxes, or patch bays.

Pros:

• No soldering required, which speeds up installation.
• Works with XLR patch bays, stage boxes, floor boxes, and panel mounts.
• Premium-quality connectors intended for pro audio setups.
• 2-pack gives you multiple ready-to-use pass-through leads.

Cons:

• It is a cable solution, not a full patch bay unit.
• Primarily suited to XLR-to-TRS pass-through use cases.

This is a strong pick if your priority is making panel or patch-bay wiring easier rather than buying a standalone routing frame. It is especially useful when you want fast installation and minimal setup hassle.

Compact Balanced Bay – ART Pro Audio TPatch 8-Point Balanced Patch Bay

If you need a smaller solderless patch bay for home studio routing, the ART Pro Audio TPatch offers eight balanced points in a compact rack-style format. With switchable half-normal and normal operation, it is a simple way to organize direct signals and linked input/output pairs without taking up much space.

Best For: Small home studios that want a compact balanced patch bay with basic routing flexibility.

Pros:

• Eight balanced points for direct signal routing.
• Switchable half-normal and normal modes with through-type connections.
• 1/4-inch TRS phone jack connectors keep wiring straightforward.
• Rugged extruded aluminum case for a durable feel.

Cons:

• Only eight channels, so it is not ideal for larger racks.
• Less flexible than higher-channel patch bays with more routing options.

The TPatch makes sense when you want a compact way to clean up a few key studio connections. It is a practical, lower-channel option for users who do not need the capacity of a larger bay.

Solderless Panel XLR Pair – 3 Pin XLR Patch Bay Cable F to M

If you need a solderless patch bay for home studio wiring, this 2-pack XLR panel mount set is a simple way to convert or replace panel connections without breaking out a soldering iron. It is built for XLR-related audio equipment and is meant for quick installation on equipment panels, racks, or wall plates.

Best For: Home studio owners who want a straightforward, no-solder XLR panel connection for gear repair, panel installs, or simple input/output conversions.

Pros:

• No soldering required; secures with screws or rivets.
• 3-pin XLR design with male-to-female patch cable format.
• Aluminum alloy housing with anti-corrosion, anti-fingerprint, and pressure-resistant properties.
• Copper inner core and PVC wire for durability and flexibility.

Cons:

• Focused on XLR panel conversion rather than a full rackmount patchbay.
• Sold as a 2-piece set, which may be more than some small setups need.

This is a practical fit if your priority is a clean, solderless panel-mount XLR connection for studio gear. The design emphasizes easy installation and stable signal transmission over advanced routing features.

No-Solder Pass-Through Option – XLR Female to 1/4" TRS Pass Through

For a solderless patch bay for home studio use, this DIYTECH pass-through cable is aimed at fast panel, floor box, or patch bay installations where you want to avoid soldering. It is positioned as a premium no-solder option for pro audio setups and is designed for clean installation in XLR wall plates and similar mounting styles.

Best For: Installers and home studio users who want a no-solder pass-through connection for patch panels, floor boxes, or wall plates.

Pros:

• No soldering required for quicker setup.
• Works with XLR floor boxes, panel mounts, and D-style keystone wall plates.
• Premium connector build for pro audio installations.
• RoHS compliant and suitable for audio transmission use.

Cons:

• Only one item is included.
• Best suited to pass-through applications, not full routing control.

This is a strong choice if your main goal is a tidy, easy-to-install connection point rather than a feature-heavy patching system. It keeps the focus on fast installation and solid connector quality for fixed audio setups.

Large Rackmount Patch Hub – 16 Port Reversible XLR Patchbay

If you want a more complete solderless patch bay for home studio routing, this 16-port rackmount XLR patchbay is built to simplify signal management across a larger setup. It uses reversible XLR connectors and a metal chassis, making it suitable for studios that need organized balanced audio distribution in a standard rack.

Best For: Home studios, live rooms, and broadcast setups that need a durable 16-port XLR patchbay for centralized routing.

Pros:

• 16-port layout for larger routing needs.
• Reversible male/female XLR connectors for flexible configuration.
• Heavy-duty steel rackmount chassis with powder coat finish.
• Mounting screws included for standard 19-inch rack installation.

Cons:

• More hardware than needed for very small studio rigs.
• Designed around rack installation, so it is less suited to simple single-panel use.

This model makes sense when you need a central, organized patching point instead of a basic single-connection adapter. Its strength is durability and flexibility in a larger balanced audio system.

How We Picked the Best Solderless Patch Bay for Home Studio

We focused on connection type, signal compatibility, build quality, channel count, and how easy each unit is to install in a home studio. For a Solderless Patch Bay for Home Studio use, we also looked at whether the design supports fast changes, secure mounting, and sensible labeling.

Balanced routing matters most for clean audio paths, so we favored options suited to studio gear rather than general-purpose adapters.

Quick Comparison

If you need a central hub for outboard gear, a 48-point rack patch bay is usually the most flexible. If your setup is built around XLR panels, feedthrough plates and pass-through cables are better for fixed wall, rack, or stage-box style installs. Smaller eight-point units work well when you only need a few routable connections.

Key Buying Factors for a Solderless Patch Bay for Home Studio

Connector Type

Match the bay to your gear. 1/4-inch balanced patch bays fit many mixers, interfaces, and outboard processors. XLR pass-through systems are better when your studio is built around mic lines, wall plates, or rack I/O.

Balanced Vs. Unbalanced Signals

For the cleanest home studio routing, balanced connections help reduce noise over longer cable runs. If your equipment uses balanced outputs and inputs, choose a patch bay that preserves that format.

Normalled, Half-Normalled, or Thru

Some patch bays offer routing modes that determine how signals flow when nothing is patched in. If you want simple direct access, thru-style options are easier. If you want default signal paths that break or continue when patched, look for configurable normaling.

Channel Count and Expansion

Choose enough points for your current setup plus a little room to grow. A compact bay may work for a small desk, but a larger rack bay is usually better if you plan to add compressors, EQs, or multiple interfaces.

Physical Installation

Check rack-mount depth, screw support, and chassis durability. Solderless Patch Bay for Home Studio installs should be straightforward, but solid mounting still matters because loose panels can lead to intermittent connections.

Who Should Buy Which Solderless Patch Bay for Home Studio?

Buy a 48-point balanced patch bay if you want the most routing flexibility for a growing studio. Choose XLR panel-mount or pass-through hardware if your priority is neat, permanent signal access through racks, walls, or stage boxes. Go with a smaller eight-point unit if you only need to route a few pieces of gear and want a simple, low-profile solution.

For most home studios, the best choice is the one that matches your existing connector standard and keeps your wiring easy to understand as your setup expands.
